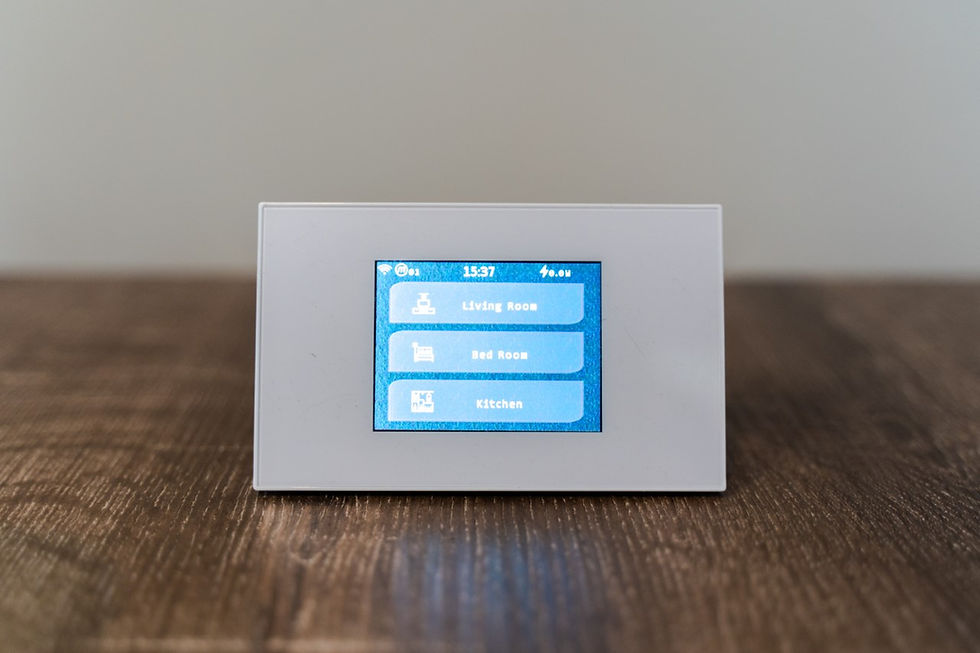

CTec Mirror

LCD SCREEN

Large LCD touch screen displays switch button names, icons, time, WiFi connection status as well as power consumption

CUSTOMISABLE STYLE

Switch styles, background picture, button names/icons can be customised either via the app or from the switch settings.

MULTI-FUNCTION

4 in 1 multi-function switch includes 1/2/3 gang switch, curtain/shutter switch to suit your needs.

VERTICAL AND HORIZONTAL INSTALLATION

Choosing either vertical or horizontal installations from switch settings.

STANDBY MODE

To save energy, the switch turns to standby mode automatically with the panel light dimmed to the level according to your setup. The switch background LED light can be turned off via the app either permanently or in a time frame.

TIMER

Three timer options.

• regular weekly timer.
• count down timer.
• auto off timer(green mode).

VOICE CONTROL AND INTEGRATION

Compatible with Apple HomeKit* and Home Assistant.

OTHER FEATURES

• sending push notifications when switch is controlled by other people.
• Supports Apple Siri shortcuts.
• Calculate your electricity bills based on the rate you entered in the app
• Ccan and connect technology to configure switch to WiFi

Product type: 4 in 1 mesh Wi-Fi multi-function smart light switch

Convertible model: 1 gang, 2 gang, 3 gang, curtain/shutter switch

Size: 120mm * 75mm

Weight: 0.3KG

Panel: Capacitive touch screen

LCD resolution: 240*320

Frame material: Retardant PC

Rated voltage: AC 100-250V 50/60Hz

Rated current/Max current: 3A/10A

Rated load: 200W

Load type: incandescent lamp, energy saving lamp, fluorescent lamp,
horizontal motor, vertical motor

Wireless Wi-Fi standard: 802.11b/g/n

Wireless Wi-Fi security: WEP/WPA/WPA2( AES-TKIP-Personal)

Wi-Fi performance transmission power: +15dBm

Wi-Fi performance receiver sensitivity: -91dBm

Standby current: 0.009A

Standby power: 2W

Operating temperature: -25 degree to +60 degree

Relative humidity: <95%
